Rolling Counter Shutter

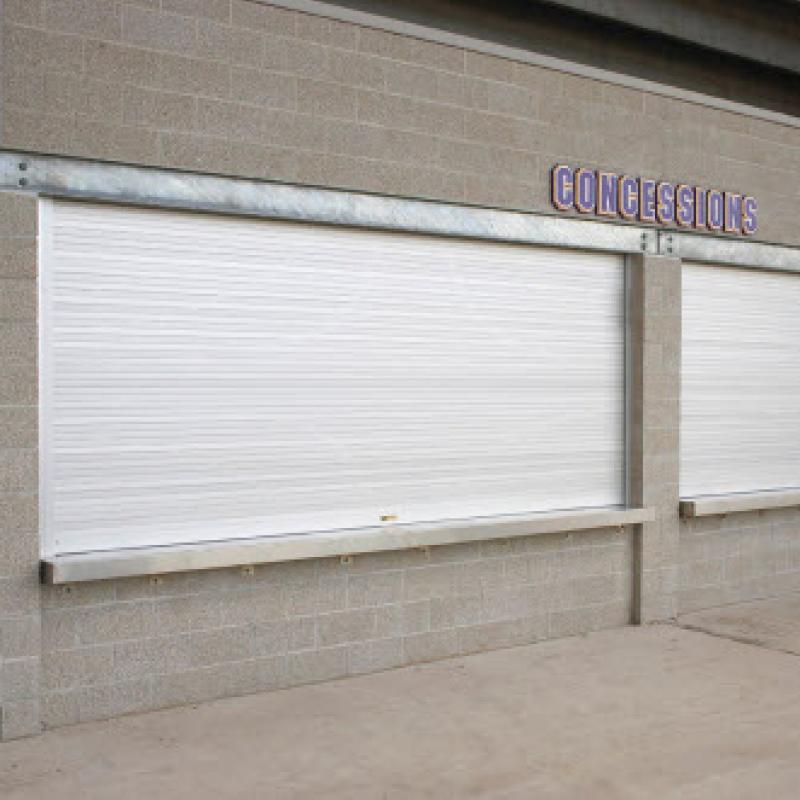

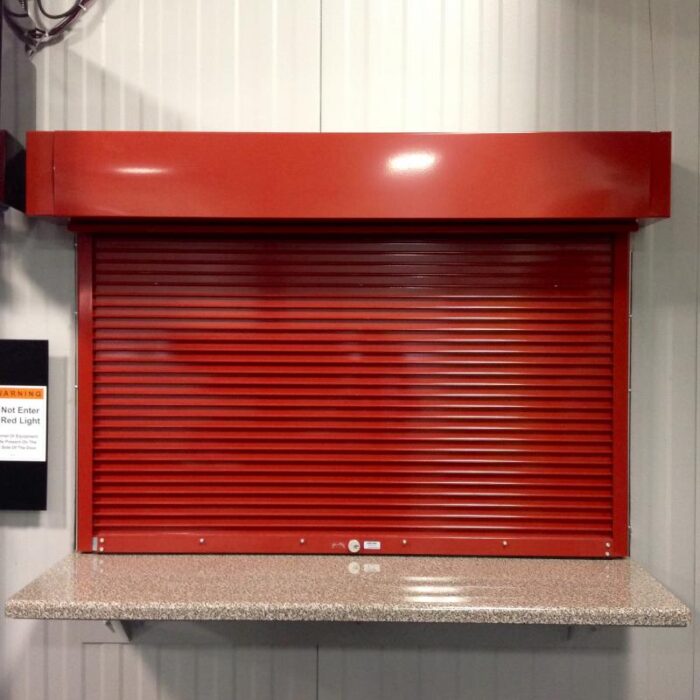

Rolling steel counter shutters provide the perfect solution for smaller openings that require visually appealing access control. Shutters are designed to be utilized in applications that incorporate counter tops or openings that require the shutter to rest on a sill. They can fit openings up to 20′ wide and 8′ high. Available in several different modes of operation including lift-up, awning crank and motor, a rolling counter shutter is the preferred solution for your application.

Durable Materials with Stylish Features

The high quality, interlocking slats on the rolling counter shutter are available in galvanized steel, stainless steel or aluminum for long-lasting durability. The “box” type guides are designed to reduce operational noise as well as to conceal the fasteners used to attach the shutter to the jamb resulting in quieter operation and greater visual appeal. A square hood cover encloses the curtain coil and counterbalance mechanism giving a clean, professional appearance.


The counterbalance assembly utilizes a spring barrel design which encases the mechanism while providing an axis around which the curtain coils. Oil-tempered, torsion-type counterbalance springs are wound from steel, providing accuracy in balancing the door. A spring tension adjusting wheel is normally mounted outside the bracket on the end of the tension rod. An inside adjusting wheel for tight side-room applications is available in limited sizes. Based on the needs of the application, there are a variety of operational choices. Counter shutter operation can be manual push-up, chain, crank, or motor-operated. Door mounting can be self-supporting (using structural tubes) or directly on to the building structure.

Attractive Options

For the ultimate in custom appearance, powder coating is available. The flexibility in color choice results in a finish that radiates beauty and smoothness to produce an aesthetically pleasing curtain to suit any decor. An optional concealed bottom bar cylinder lock activates steel tamperproof lock rods. The lock uses a standard mortise cylinder and is available with an optional removable core.
