SlideAir

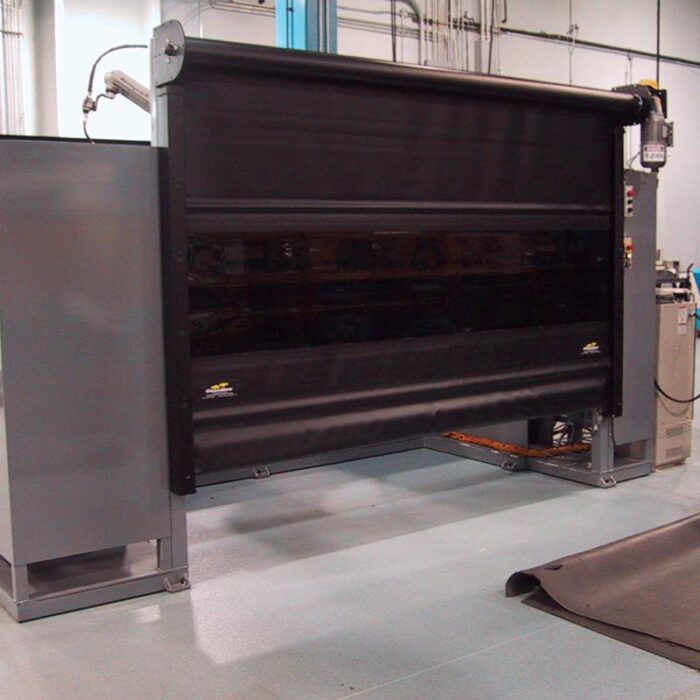

The SlideAir Automated Safety Curtain is designed to improve safety and reduce or eliminate process driven hazards in manufacturing applications. The SlideAir can be used in conjunction with light curtains, area scanners or safety mats by providing separation and containment of process driven hazards. The pleated curtain design allows for minimal curtain storage area. The SlideAir is a safe and economical industrial curtain for many manufacturing applications.

Overview:

  • Automated to the process to reduce operator fatigue.
  • Increases productivity
  • Door provides clear visual that operator should be on task.
  • Proven, safe, reliable design.
  • Guards your machinery and protects your employees.
  • Contains application driven hazards including weld flash/sparks/smoke, mist, flying debris and other exposure.

Features and Benefits:

  • Can be used in conjunction with light curtains, area scanners and safety mats to reduce/eliminate secondary hazards from the manufacturing process.
  • Optional Control Box/Junction Box is simple.
  • Custom Manufactured to exact size requirements.
  • Rugged Construction.

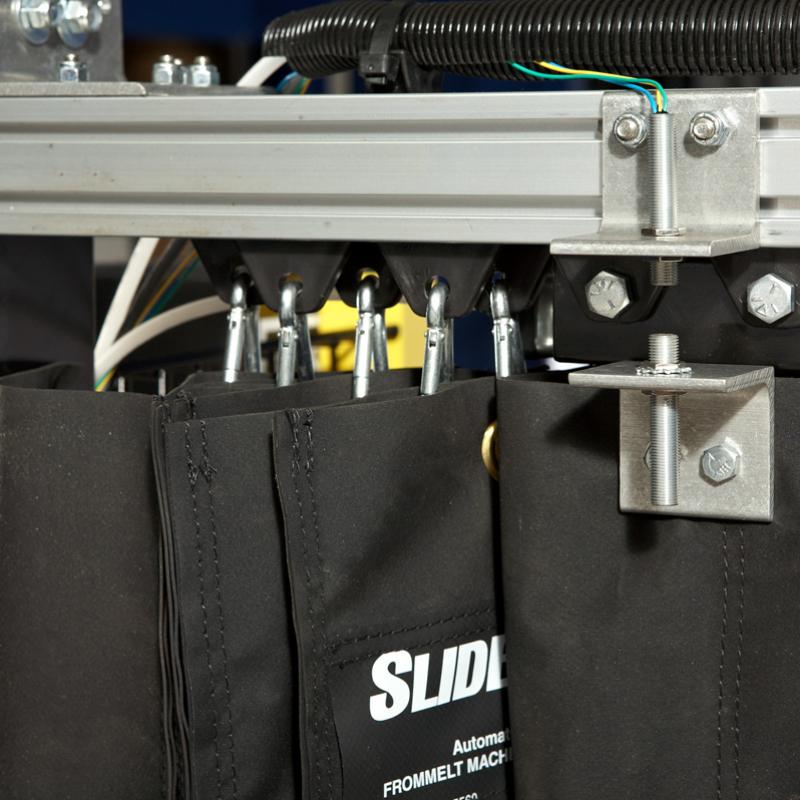

  • Pleated curtain reduces storage space when in the open position 120″ (3048 mm) wide opening can store in a 21″ (533 mm) space.
  • 1″ (25 mm) Bore Rodless Cylinder suited for millions of cycles – reduces maintenance costs.
  • 24″ per second (0.6 m/sec) max. open and close speed increases productivity.
  • Optional vertical supports (2) or single cantilevered support for space considerations.
  • Limited one year warranty. Comes Fully Assembled.
  • Industries #1 Pneumatically Operated Sliding Curtain.
  • Door provides clear visual that operator should be on task.
  • Fabric choices resists application driven hazards.
  • Easy Installation.
  • Adjustable air pressure controlled speed for different applications.
  • Custom 2″ x 4″ (50 mm x 101 mm) aluminum extrusion for easy mounting and rigidity.
